Angle Steel Tower CNC Drilling Marking Line

Payment Type: L/C,T/T,D/P,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA
Min. Order: 1 Set/Sets
Delivery Time: 30  Days

Basic Info

Model No.: JGZ-3635H

CNC: High Effieciency

OEM/ODM: OEM/ODM Manufauturing

Certificate: ISO9001;CE;SGS

Max.speed Of Drilling Spindle: 6000r/min

The Number Of CNC Axis: 9

The Feeding Speed Of Angle Steel: 40m/min

Additional Info

Packaging: Wooden Pallet/Wooden Boxes or customized

Productivity: 20 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 20 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Guangzhou,Shanghai

Product Description

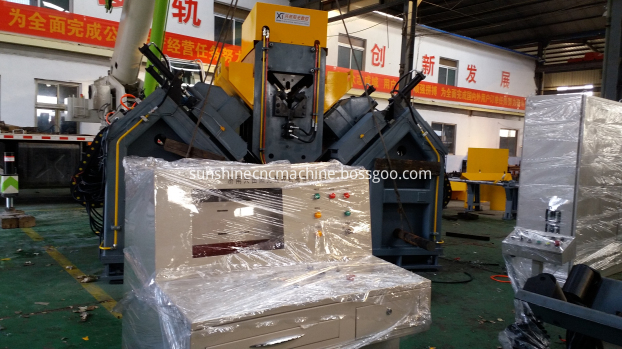

Angle Steel Tower CNC Drilling Marking Line:


JGZ-3635 CNC High Speed Angle Steel Drilling Production Line:

 This high speed angle drilling CNC production line is the newest production of

our company for angle of drilling special equipment.



1) This machine adopt CNC technology, servo motor feed makes positioning accurate,

     high efficiency, stable working accuracy;

2)The CNC system has the function of real-time monitoring, fault self-diagnosis function

    and abnormal alarm function, abnormal operation will automatically stop;

3) Liquid, gas, electric parts all international famous brand,imported;

4) Chinese/English interface can display the graphic of work-piece and operate easily;

5) Print and drill are automatically, finished production with pneumatic flip unloading,

    reduce the labor intensity greatly;

6)We can obtain the computer editing process through the CNC system for processing;

7) It has the function of high speed drilling, the top speed of the drilling spindle up

     to 3500r/min;

8) It has two set of six independent axis, those axis 90°layout on the main frame

    Servo motor drive can drill in any position;

9) Adopt the world`s most advanced short-hole drill, the surface of processing highly

     polished, the hole size is accurate, work efficiency is high.



Technical Data:

Angle steel size (mm)

   L140*140*10---L360*360*35

Max .length (m)

12

Marking normal force (KN)

               1200

Number of character

                  1

Digit number of each group

                18

Character size(mm)

             14*10*19

The adjusting range of stadia(mm)

              40--340

Drilling diameter(mm)

              17-40

Max. speed of drilling spindle(r/min)

                 6000

The number of drilling spindle

         Each side 3, total of 6

The hole of spindle

                  BT40

They way of tool clamping

         Pneumatic play knife

The number of CNC axis

                    9

The feeding speed of angle steel (m/min)

                   40

The way of cooling

         High pressure spray cooling

The total power of machine

                About 120





Jinan XingTian Sunshine CNC Machine Co.,Ltd. is Leading Manufacutrer of CNC Steel Plate

Drilling Machine,CNC Steel Drilling Machine,CNC Plate Drilling Machine,CNC Drilling Machine

in China,having been exporting to Russia; Ukraine; KSA; UAE; Egypt; Morocco; Kenya; Ethiopia;

South Africa; India; Sri Lanka; Pakistan; Bangladesh;Myanmar; Thailand; Indonesia; Malaysia;

Austrailia; Brazil;Mexico; South Korea etc. for more than 10 years.



drilling line export




High speed angle steel drilling machine


FINISHED PRODUCTS




company name


Remarks

Pkg: Seaworthy packing or customized

Terms: FOB/CIF/CFR/EXW

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive Your First Payment

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and

                The rest 70% is effected while delivering the goods

Trademark:



Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
