High Speed CNC Angle Production Line

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA
Min. Order: 1 Set/Sets
Delivery Time: 30  Days

Basic Info

Model No.: YQJ Series

CNC: High Effieciency

OEM/ODM: OEM/ODM Manufauturing

Auto Convey Drilling Chips: Auto Convery Drilling Chips

Additional Info

Packaging: Wooden Pallet/Wooden Boxes/Nude

Productivity: 20 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 20 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Tianjin,Shanghai

Product Description

High Speed CNC Angle Production Line:


This production line is suitable for electric power, telecommunications,

hardware,Three-dimensional garage,elevator manufacturer,air conditioning

and other fields Angle profile of seal,hole, cut off the job, by changing

the mold to form slotted-hole, Profiled hole at one-time.


Technical Data:

      Model

      YJX-2020

        YJX-1612

Angle steel size(mm)

L40*40*3-L200*200*20

  L40*40*3-L160*160*12

Max. Punching (mm)

∮26*20(16mm, Q345)

 ∮26*12(10mm, Q345)

Punching force (KN)

       1000

   600/1000

Typing force(KN)

        700

     700

Shearing force (KN)

        1400

     1500

Max.length of blank(m)

         12

      12

Max.length of finished (m)

         10

      12

Qty. of punch on each side

          3

      2/3

Qty.of typing group

          4

       4

Character size (mm)

      14*10*19

   14*10*19

CNC Axis

          3

       3

Shearing mode

Double blade shearing

 Single blade shearing

Feeding speed (m/min)

    MAX. 90

   Max. 90

Processing precision

           Accordance with GB/T2694

Program function

       Real time fault display

Programming mode

      Input by keyboard & USB interface

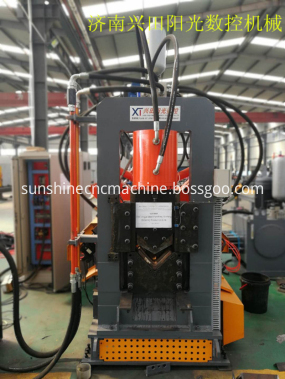

Angle bar production line

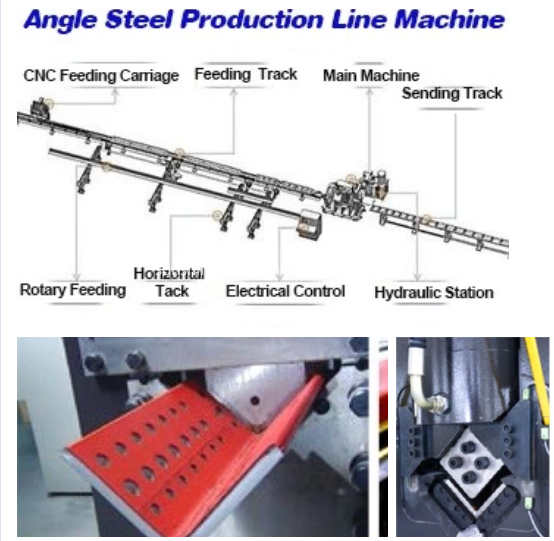

Angle Line Drawing

Finished Products :

Tx02 02


Drilling machine for India



Jinan XingTian Sunshine CNC Machine Co.,Ltd. is Leading Manufacturer

of CNC Steel Plate Drilling Machine,CNC Steel Drilling Machine,CNC Plate

Drilling Machine,CNC Drilling Machine in China,having been exporting to

Russia; Ukraine; KSA; UAE;Egypt; Morocco; Kenya; Ethiopia; South Africa;

India; Sri Lanka; Pakistan; Bangladesh;Myanmar; Thailand; Indonesia;

Malaysia;Australia; Brazil; Mexico; South Korea etc. for more than 10 years.



Remarks:

Pkg: Seaworthy packing or customized

Terms: FOB/CIF/CFR/EXW

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive Your First Payment

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and

                The rest 70% is effected while delivering the goods

Trademark:



Guarantee & Aftersales service:

1)Guarantee the complete machine for 18 months, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.



Contact person: Ms.Sailing He

Mobile: +86 18005318120 (Wechat)

Whatsapp: +86 13361033782
