CNC Aluminum Curtain Wall Drilling Milling Machine

Payment Type: L/C,T/T,D/P,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: WZX-CNC-1000

Color: Grey/white/blue Or Customized

Warranty: 18 Months

Packing: Seaworthing Or Customized

Voltage: 380V Or Customized

Model: WZX-CNC-1000

Additional Info

Packaging: Seaworthy packing, wooden box or customized

Productivity: 100 sets/month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Shandong,China

Supply Ability: 100 sets/month

Certificate: ISO9001/CE/SGS

HS Code: 847780

Port: Qingdao,Shanghai,Guangzhou

Product Description

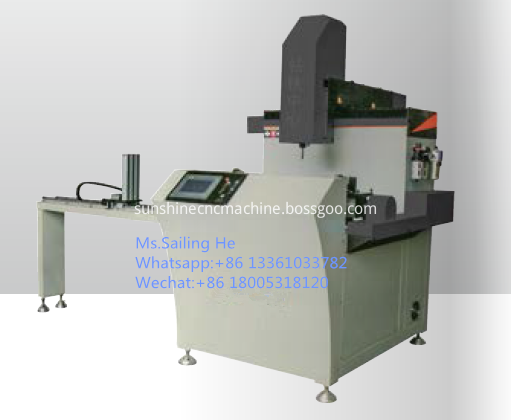

WZX-CNC-1000  Aluminum Curtain Wall Drilling Milling Machine



1) The processing range is large, and it is used for cutting and cutting of aluminum profiles

    and curtain wall profiles;

2) Applicable for drilling holes, milling grooves, processing circular holes and special-shaped holes,

    plane engraving of aluminum alloy profiles;

3) System adopts Taiwan Syntec CNC controller;

4) Adopting electric spindle, high precision, high safety and reliability;

5) X axis adopts high-precision Helical gear and rack; Y and Z axis adopt high precision ball screw

    Transmission, steady transmission and high precision;

6) By using programming software to automatically transform and process G. code, easy operation,

    high efficiency and low labor intensity;

7) Workbench can turn 180°, -90°--0°-- +90°,it can realize three-sides` processing by clamping

     one time, it can process deep and special-shaped holes through workbench rotation , high

     efficiency and precision.


Technical Parameters:

Power supply

380V/50Hz or customized

Input power

3KW

Main axis rotation speed

18000r

Air pressure

0.5-0.6Mpa

X-axis stroke

1200mm

Y-axis stroke

300mm

Z-axis stroke

280mm

Processing range

100*140mm

Handle type

ER25*8

Machine size

2200*1500*1950mm



WZX-CNC-1000 ALUMINUM DRILLING MILLING MACHINE


Remarks

Pkg: Seaworthy packing or customized

Terms: FOB/CIF/CFR/EXW

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive Your First Payment

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and

                The rest 70% is effected while delivering the goods




Guarantee & Aftersales service:

1)Guarantee the complete machine for 18 months, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
