CNC Angle Steel Drilling Equipment

Payment Type: L/C,T/T,D/P,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA
Min. Order: 1 Set/Sets
Delivery Time: 30  Days

Basic Info

Model No.: JGZ-3635H

CNC: High Effieciency

OEM/ODM: OEM/ODM Manufauturing

Certificate: ISO9001;CE;SGS

Max.speed Of Drilling Spindle: 3500r/min

The Number Of CNC Axis: 9

The Feeding Speed Of Angle Steel: 40m/min

PARTS: International Famous Brand

Warranty: 12 Months

Additional Info

Packaging: Wooden Pallet/Wooden Boxes or customized

Productivity: 20 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 20 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Guangzhou,Shanghai

Product Description

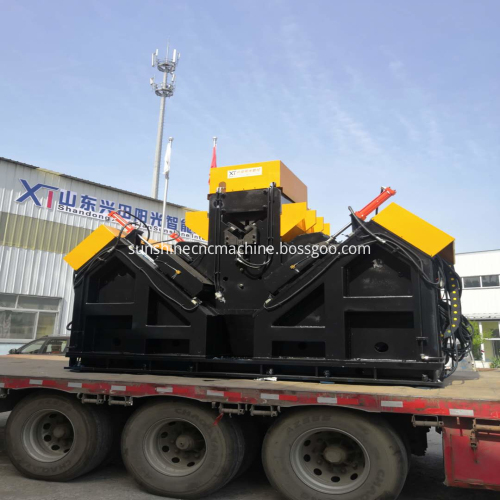

CNC Angle Steel Drilling Equipment :



CNC Drilling Machine for Angle Steel is the newest production of our company for angle

of drilling special equipment.



1) This machine adopt CNC technology, servo motor feed makes positioning accurate,

     high efficiency, stable working accuracy;

2)The CNC system has the function of real-time monitoring, fault self-diagnosis function

    and abnormal alarm function, abnormal operation will automatically stop;

3) Liquid, gas, electric parts all international famous brand,imported;

4) Chinese/English interface can display the graphic of work-piece and operate easily;

5) Print and drill are automatically, finished production with pneumatic flip unloading,

    reduce the labor intensity greatly;

6)We can obtain the computer editing process through the CNC system for processing;

7) It has the function of high speed drilling, the top speed of the drilling spindle up

     to 3500r/min;

8) It has two set of six independent axis, those axis 90°layout on the main frame

    Servo motor drive can drill in any position;

9) Adopt the world`s most advanced short-hole drill, the surface of processing highly

     polished, the hole size is accurate, work efficiency is high.



Technical Data:

Angle steel size (mm)

   L140*140*10---L360*360*35

Max .length (m)

12

Marking normal force (KN)

               1200

Number of character

                  1

Digit number of each group

                18

Character size(mm)

             14*10*19

The adjusting range of stadia(mm)

              40--340

Drilling diameter(mm)

              17-40

Max. speed of drilling spindle(r/min)

                 6000

The number of drilling spindle

         Each side 3, total of 6

The hole of spindle

                  BT40

They way of tool clamping

         Pneumatic play knife

The number of CNC axis

                    9

The feeding speed of angle steel (m/min)

                   40

The way of cooling

         High pressure spray cooling

The total power of machine

                About 120

 Angel steel drilling machine 2



 Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
