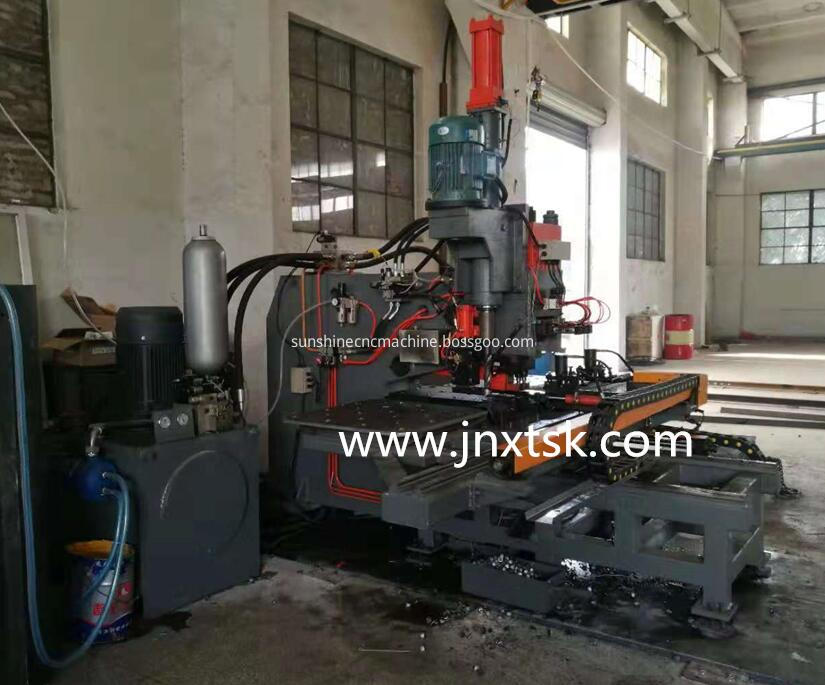

CNC Steel Plate Punching Drilling Machine

Unit Price: USD 30000.0000 - 40000.0000 / Set/Sets
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: YBJZ-100

Control Way: CNC Control

Force: Hydraulic

Auto Lubrication: Auto Lubrication

Working Time: Stable Long-life Time

Additional Info

Packaging: Wooden Pallet/Wooden Boxes/Nude

Productivity: 20 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 20 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Tianjin,Shanghai

Product Description

CNC Hydraulic Punching Marking Machines Parameters As Follows:

Max size of work piece: 1500x800mm

2.Max punching diameter: 26mm

3.Punching thickness: 5~25mm

4.Punching force: 1000KN Marking force:800 KN

5.Dimensions of marking:14x10x19

6.Die-stations:4 (2 punching,1marking,1drilling)

7.Max. Drilling Steel Plate Thickness:40mm

8.Max. Drilling Hole Diameter: 50mm


9.Programming Mode:Input by keyboard,R232 or USB interface

8.Hydraulic System:oil cooling

9.CNC Two Axis

10.Precision: +/-0.5mm

11.Total Power: 25kw.

12.Over Dimension:3200x3000x2600mm

Weight: 6600kgs or so



 Apply scope


        It is used to punching, drilling and typing on plate materials of
steel structure, iron tower industry and car wing plate etc.

2.  Technique characteristics

        A. integration of machinical, electrical and hydraulic;

        B. controled by PLC and fed by serve motor;

        C. possess the function of malfunctions self-diagnosis

        D. easy program and can use directly the program data generated by
sample software;

3. Product advantages

        A. Major functional parts adopt modularization assemble, easy to
maintain;

        B. The same plate can be punched,typed and drilled;

        C. Drilling unit possesses the empty run fast forward function,
slow speed processing function, high speed return function to improve the work
efficiency;

        D. Program only need to input workpiece size, diameter, workpiece
number, and may also constitute local area network with design department to
share data;

4. Notes

      This machine have many types and can be designed according to
customers` requirements
