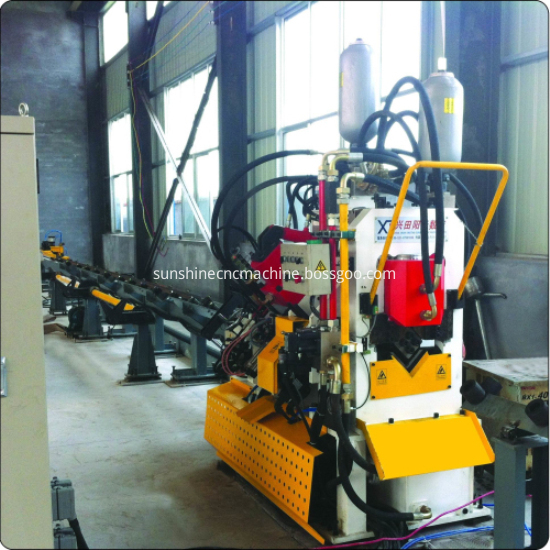

CNC Steel Punching Marking Shearing Machine

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA
Min. Order: 1 Set/Sets
Delivery Time: 30  Days

Basic Info

Model No.: YJX1010/1612

Model: YJX-1010

OEM/ODM: OEM/ODM Manufauturing

Machine Section: Mechanical Part/Hydraulic Total 4 Parts

Angle Steel Size: L35*35*3-L100*100*10

Max. Punching (dia*thickness): 26*10mm (8mm Q345)

Punching Force: 600/750KN

Typing Force: 700KN

Shearing Force: 1200KN

Additional Info

Packaging: Wooden Pallet/Wooden Boxes/Nude

Productivity: 20 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 20 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Tianjin,Shanghai

Product Description

CNC Steel Punching Marking Shearing Machine for Electric Power Use:


Machine Features:

1. Good rigidity, compact structure, optimized arrangement of work pieces,

  Good function of cutting integrated, high material using rate.
2. Marking, punching, cutting, are automatically operated with high efficiency.
3. Computer has friendly interface, which can show work piece's figure,

  Easy for operation.
4. Easy programming, only need to input the data of work piece size, hole

  Diameter, back mark value and quantity wanted for finished pieces.

  Or the programming data created from sample software can also be directly used
5. Many solutions are adopted to resolve problems of difficult feeding-in angle

  Bar and back mark error which are caused by angle bar deformation.
6. With PLC and servo motor the machine can get high efficiency and stable

  work accuracy.
7. The control system has self-diagnose and data statistics
8. The key hydraulic, pneumatic and electrical components are all imported.


Technical Data:

      Model

      YJX-1010

        YJX-1612

Angle steel size(mm)

L35*35*3-L100*100*10

  L40*40*3-L160*160*12

Max. Punching (mm)

∮26*10(8mm, Q345)

 ∮26*12(10mm, Q345)

Punching force (KN)

       600/750

   600/1000

Typing force(KN)

        700

     700

Shearing force (KN)

        1200

     1500

Max.length of blank(m)

         12

      12

Max.length of finished (m)

         12

      12

Qty. of punch on each side

         2/3

      2/3

Qty.of typing group

          4

       4

Character size (mm)

      14*10*19

   14*10*19

CNC Axis

          3

       3

Shearing mode

Single blade shearing

 Single blade shearing

Feeding speed (m/min)

    MAX. 90

   Max. 90

Processing precision

           Accordance with GB/T2694

Program function

       Real time fault display

Programming mode

      Input by keyboard & USB interface



New Style Angle Punching Line


Finished Products :

Tx02 02


1


Partial Patents



Guarantee & Aftersales service:

1)Guarantee the complete machine for 18 months, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
