Insulating Glass Butyl Extruder Machine

Basic Info

Model No.: JT03B

Certificate: ISO9001;CE

Model: JT03B

Color: White/blue/black Or Customized

Voltage: 220V/50Hz Or Cutomized

Power: 3.45KW

Extrusion Temperature: 110-140 Degreee

Conveying Speed: 0-30m/min

Adjustable Range Of Rubber Head: 6-18mm Automatic, Max. 30mm (manual)

Rubber Cylinder Diameter: 200mm

Machine Size: 3000*620*1102mm

Additional Info

Packaging: Seaworthy packing, wooden box or customized

Productivity: 20sets/month

Brand: Sunshine CNC

Transportation: Ocean,Air,by truck

Place of Origin: Shandong,China

Supply Ability: 20sets/month

Certificate: ISO9001;CE

Port: Qingdao,Shanghai,Guangzhou

Product Description

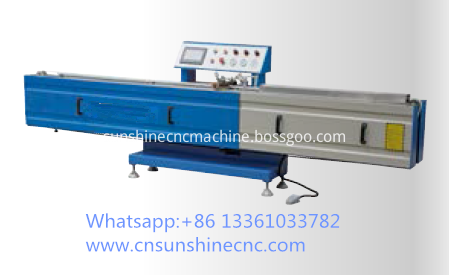

Insulating Glass Butyl Extruder Machine:

1) Adopt advanced original pneumatic pump system to make equipment pressure more

    stable and energy saving;

2) Using 7-inch touch screen man-machine interface control system, the operation is more

    clear and simple;

3) Adopt frequency conversion speed transmission system, speed 1-5 files, 15-30 meters /min optional;

4) Take the lead in adopting advanced automatic glue adjustment system, which can be adjusted

     arbitrarily within 6-18MM;

5) The rubber cylinder adopts a rotary structure, which can rotate freely from 0 to 90 degrees,

    and is easy to maintain.

6) Using pre-heating system, arbitrarily set pre-heating time to improve efficiency;

7) Automatic glue alarm system to accurately display the amount of glue used;

8) Large-size rubber cylinders, the amount of glue added can reach 14 kgs.

Remarks:

Pkg: Seaworthy packing or customized

Terms: FOB/CIF/CFR/EXW

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive Your First Payment

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and

                The rest 70% is effected while delivering the goods



Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
