| Payment Type: | L/C,T/T,D/P,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 15 Days |
Basic Info
Model No.: LJG-500/550
Color: Grey/white/blue Or Customized
Warranty: 18 Months
Packing: Seaworthing Or Customized
Voltage: 380V Or Customized
Model: LJG-500/550
Additional Info
Packaging: Seaworthy packing, wooden box or customized
Productivity: 100 sets/month
Brand: Sunshine CNC
Transportation: Ocean,Land,Air
Place of Origin: Shandong,China
Supply Ability: 100 sets/month
Certificate: ISO9001/CE/SGS
HS Code: 847780
Port: Qingdao,Shanghai,Guangzhou
Product Description

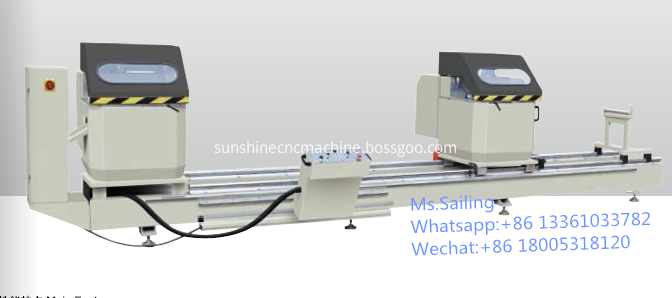

LJG--500/550 Double Mitre Saw in Heavy Duty:
Main Feature:
1) It is mainly used for cutting of aluminum alloy profiles, and can also be used for cutting of plastic profiles;
2) Using a carbide saw blade with an outer diameter of up to 20", high line speed and high machining accuracy;
3) The working of the machine tool is that the two saw blades can be cut at the same time;
4) The saw blade can be placed at a required angle of 90°--45°;
5) This machine can be equipped with a digital display device, which is more suitable for the cutting of aluminum alloy profiles.
Technical Data:
|
Voltage |
380V 50Hz/customized |
Cutting Width |
Max.230mm 45° Max.250mm 90° |
|
Saw-head motor power |
2*2.2KW |
Cutting Height |
Max.120mm 45° Max.200mm 90° |
|
Air pressure |
0.5-0.8Mpa |
Blade specification |
∮500*30mm Z=120 |
|
Cutting length |
Max.4500mm Min.480mm (Inner pendulum) |
Cutting angle |
45°;90° |
|
Rotation speed |
2800r/min |
Machine size |
5750*1300*1360mm |
