Top QUality Patent Structure Beam Line

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA
Min. Order: 1 Set/Sets
Delivery Time: 30  Days

Basic Info

Model No.: YJCX-18

OEM/ODM: OEM/ODM Manufauturing

Model: YJCX-18

Certificate: CE/ISO9001

CNC Or Not: CNC

Color: Grey/Blue Or Customized

Voltage: 380V/50HZ/3P Or Customized

Cooling Type: Water/air Cooling

Function: Punching/shearing/marking

PARTS: Internationl Famous Brand

Additional Info

Packaging: Wooden Pallet/Wooden Boxes/Nude or customized

Productivity: 10 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 10 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Tianjin,Shanghai

Product Description

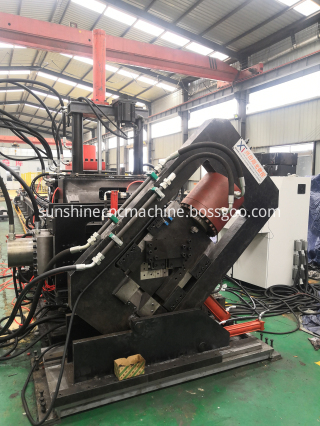

Top QUality Patent Structure Beam Line:


This machine can process Channel steel, Angle steel and Band Steel.It's our patent equipment.


1) This is our patent product. A patent certificate issued by the state intellectual property office has been obtained.

2) This machine adopts the main engine of this CNC production line adopts the steel mechanism. Small size, light

    weight and good rigidity.

3) The hydraulic system is replaced by the solenoid valve and the structure is simple, easy to use and easy to maintain.

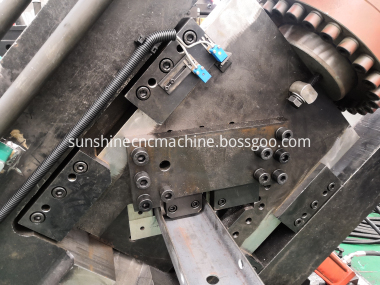

4) The equipment realizes the multi-distance punching of the Angle steel, channel steel(three surface)and band steel.

5) Shearing unit is a single blade shear, it can ensure the quantity of cut.

6) The equipment realizes the punching of multiple varieties and multi-pore diameter. It basically meets the

     requirements of angle steel (less than 140 width) and channel steel/band steel (less than 180 width).

7) The new processing technology reduces the auxiliary working time and improves the working efficiency.


Technical Data:

                 Item Name

             Specification

Angle steel size (mm)

            L63*4-L140*10

Channel steel size (mm)

              8#-18#

Band steel size (mm)

            40*4-180*10

Max.length of blank (m)

                9

Max.punching (diameter*thickness/mm)

       ∮26 (Long hole 22*60)

Punching fore (KN)

               1000

Shearing force (KN)

                1500

Qty.of punch on each size (piece)

                4+2+2

CNC axis

                  3

Feeding speed (m/min)

                 45

Punching speed (piece/min)

                40-50

Shearing mode

          Single blade shearing



Guarantee & Aftersales service:

1)Guarantee the complete machine for 18 months, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
