XTS400 Glass Standard Installation Robot

Payment Type: L/C,T/T,D/P,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 10 Days

Basic Info

Model No.: XTS400

Model: XTS400 Installation Robot

Vacuum Pump: CV-35, DC 24V

Additional Info

Packaging: Seaworthy packing, wooden box or customized

Productivity: 200sets/month

Brand: Sunshine

Transportation: Ocean,Air,by truck

Place of Origin: Shandong,China

Supply Ability: 200sets/month

Certificate: ISO9001;CE

Port: Qingdao,Shanghai,Guangzhou

Product Description

XTS400 Glass Standard Installation Robot :

Main Specifications:

1. Maximum load: 400kg while the second ram back to end, 250kg while the second

   ram full extended

2. Maximum lifting height: 3500mm from ground to the center of the suction frame

3. Moving: automatically moving, speed control by manual roller sensibly

4. Lifting control: with hydraulic ram, controlled by manual mechanism valve sensibly

5. extension control: with hydraulic ram, controlled by manual mechanism valve sensibly,

    maximum extension distance 650mm, maximum extension distance from the front

    wheel to the suction pads was 1350mm( the ram in parallel with ground)

6. tilting control: with hydraulic ram, controlled by manual mechanism valve sensibly,

   the maximum tilting degree near to 125 degree

7. rotation control: By manual, with a spring lock for positioning, the maximum rotation

    was 270 degree

8. Side moving: with hydraulic ram, controlled by manual mechanism valve sensibly,

    75mm for both sides, totally 150mm

9. side turning: By manual, with a spring lock for positioning, the maximum rotation was

    180 degree, 90 degree for both sides

10. self weight: about 850kg with counterweight, 530kg without counterweight

11. Power: DC 24V

12. Driven unit: the rear wheels driven with DC motor worked as driven unit as well as

      for turning

13. Wheels: 300mm*150mm *2 solid type in front, single wheel of 250mm in rear

14. Driven unit power: DC 24V brush-less motor, .1.2KW

15. Hydraulic station power:1.2KW

16. Battery: 12V,55A*4

17. Maximum working period: about 20 Hours

18. Dimensions: pls see the drawing

19. Charging power:110-220V

20. Charging time: about 5 hours

21. Vacuum system: Dual pump and dual system

22. the suction frame sized of 1800mm(L) and 800mm(W)

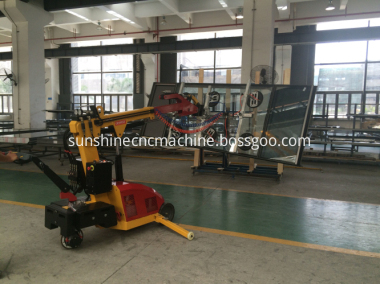

XTS400 Glass installation robot

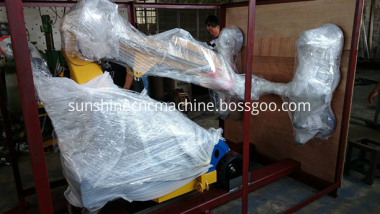

XTS400 PACKING

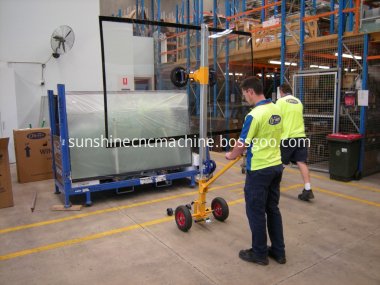

Hot Sale Manual Express Glass Vacuum Lifter:

Quattro model: This model adapted hand-pump suction pads instead of powered pads.

It featured With its convenience with no power needed and detachable parts for easy

carry, its movable function help people to handle or transport glass indoors with easy,

unload glass from truck, as well as for installation indoors, the Quattro has continuous

360°rotation but without tilting.



Model

Express

Nomad

Capacity (kg)

150

400

Dia of pads (mm)

230

4 of 300mm, 1 of 230mm

Pad number

2

5

Vacuum source

Hand-pump

Hand-pump

Lifting

By hand winch

By hand winch

Moving

Manual

Manual

Rotation

Manual

Manual

Rotation degrees

Continuous 360°

Continuous 360°

Packing size

1790*600*700mm

2010*1025*740mm

Weight (G.W)

90kgs

200kgs

H.S.Code

8425110000

8425110000

PRICE USD (FOB)




 Express Bus 4


Remarks:

Pkg: Seaworthy packing or customized

Terms: FOB/CIF/CFR/EXW

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive Your First Payment

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and

                The rest 70% is effected while delivering the goods




Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.



Contact person: Ms.Sailing He

Mobile: +86 18005318120 (Wechat)

Whatsapp: +86 13361033782

Skype: judy.he74
