CNC Punch Cutting Line for Angle Bar

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA
Min. Order: 1 Set/Sets
Delivery Time: 30  Days

Basic Info

Model No.: YJX-2020/1612

CNC: High Effieciency

OEM/ODM: OEM/ODM Manufauturing

Auto Convey Drilling Chips: Auto Convery Drilling Chips

Spare Parts: Internationl Famous Brand

Additional Info

Packaging: Wooden Pallet/Wooden Boxes/Nude

Productivity: 20 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 20 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Tianjin,Shanghai

Product Description

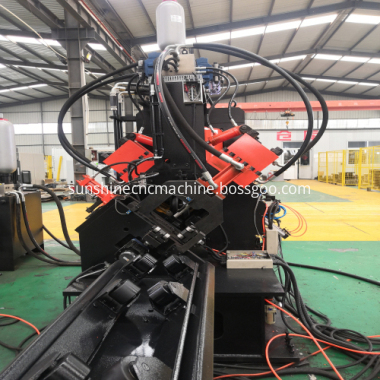

CNC Punch Cutting Line for Angle Bar:


Main Features:

1)  Punching, shearing, marking, compress workpiece and transposition of Character all driven

     by hydraulic, mainly hydraulic component are imported product.Hydraulic station set up

     high pressure exquisite filtration,energy accumulator,cooler, air cleaner and indicating

     instrument of pressure, temperature, liquid level.


2)The carriage is driven by servo motor, optical-electricity encoder for feedback, closed loop

    control, high location accuracy.


3) Workpiece size input, workpiece picture display, data store, generate workpiece programme,

    locate data display, fault alarm all can realized by computer, large-scale PLC, CNC system and

    external detection switch, control all fronts autocycle. Main component are international

    famous brands.


4)There are three sets of punching die-station on each side, they are easy to take out. in order to

    change punch and female die. Punch collection, Workpiece clamp, clamp uplift, feed-in buffer,

    finished product unloading all driven by compressed air cylinder. Electro-pneumatic valve,

   trigeminal Pneumatic subassembly are international famous brand.


Technical Data:

      Model

      YJX-2020

        YJX-1612

Angle steel size(mm)

L40*40*3-L200*200*20

  L40*40*3-L160*160*12

Max. Punching (mm)

∮26*20(16mm, Q345)

 ∮26*12(10mm, Q345)

Punching force (KN)

       1000

   600/1000

Typing force(KN)

        700

     700

Shearing force (KN)

        1400

     1500

Max.length of blank(m)

         12

      12

Max.length of finished (m)

         10

      12

Qty. of punch on each side

          3

      2/3

Qty.of typing group

          4

       4

Character size (mm)

      14*10*19

   14*10*19

CNC Axis

          3

       3

Shearing mode

Double blade shearing

 Single blade shearing

Feeding speed (m/min)

    MAX. 90

   Max. 90

Processing precision

           Accordance with GB/T2694

Program function

       Real time fault display

Programming mode

      Input by keyboard & USB interface


CNC punching cutting line for angle bar


Guarantee & Aftersales service:

1)Guarantee the complete machine for 18 months, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
