XT CNC Angle Steel Flange Production Line

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA
Min. Order: 1 Set/Sets
Delivery Time: 30  Days

Basic Info

Model No.: YJX-2020/1612

CNC: High Effieciency

OEM/ODM: OEM/ODM Manufauturing

Auto Convey Drilling Chips: Auto Convery Drilling Chips

Spare Parts: Internationl Famous Brand

Additional Info

Packaging: Wooden Pallet/Wooden Boxes/Nude

Productivity: 20 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 20 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Tianjin,Shanghai

Product Description

XT CNC Angle Steel Flange Production Line :


CNC Angle Steel Tower Processing Equipment  is suitable for electric power,

telecommunications,hardware,Three-dimensional garage,elevator manufacturer,air

conditioning and other fields Angle profile of seal,hole, cut off the job, by changing

the mold to form slotted- hole,Profiled hole at one-time.


Technical Data:

      Model

      YJX-2020

        YJX-1612

Angle steel size(mm)

L40*40*3-L200*200*20

  L40*40*3-L160*160*12

Max. Punching (mm)

∮26*20(16mm, Q345)

 ∮26*12(10mm, Q345)

Punching force (KN)

       1000

   600/1000

Typing force(KN)

        700

     700

Shearing force (KN)

        1400

     1500

Max.length of blank(m)

         12

      12

Max.length of finished (m)

         10

      12

Qty. of punch on each side

          3

      2/3

Qty.of typing group

          4

       4

Character size (mm)

      14*10*19

   14*10*19

CNC Axis

          3

       3

Shearing mode

Double blade shearing

 Single blade shearing

Feeding speed (m/min)

    MAX. 90

   Max. 90

Processing precision

           Accordance with GB/T2694

Program function

       Real time fault display

Programming mode

      Input by keyboard & USB interface

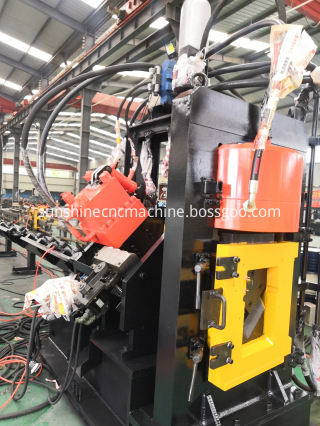

CNC angle steel flange production line (2)


Guarantee & Aftersales service:

1)Guarantee the complete machine for 18 months, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
