Jinan Double Glazing Glass Production Line

Payment Type: L/C,T/T,D/P,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 10 Days

Basic Info

Model No.: ZKX2500A/2500/2200/2000/1800/1600

Certificate: ISO9001;CE

Color: White/blue/black Or Customized

Model: ZKX-2500

Additional Info

Packaging: Seaworthy packing, wooden box or customized

Productivity: 20sets/month

Brand: Sunshine CNC

Transportation: Ocean,Air,by truck

Place of Origin: Shandong,China

Supply Ability: 20sets/month

Certificate: ISO9001;CE

Port: Qingdao,Shanghai,Guangzhou

Product Description


Jinan Double Glazing Glass Production Line:


1) It can process double-layer insulating glass (three glass two cavity), coated insulating glass,

    tempered insulating glass, LOW-E insulating glass and other medium and high-grade insulating

    glass products;

2) The washing machine adopts oil-free lubricating bearing;

3) The whole machine adopts vertical tilting mechanism, stable transmission, PLC control, touch

    screen display and adjustment, and automatic detection and control of key parts;

4) This line can complete the following functions: glass transfer, glass cleaning, drying, inspection,

    aluminum frame positioning, automatic outer close-together, flat pressure, hollow glass flipping,

    flattening and discharging;

5) At the same time, it also automatically monitors the working condition of the device itself to

   control the device to avoid malfunction, ensure product quality and improve safety performance;

6) The production line has the characteristics of high efficiency, energy saving, safety, easy operation,

    small land occupation, beautiful appearance, etc. It is the best equipment for hollow glass

    manufacturing.


      Technical Parameters:

        Max. Glass Size

           2450*3660mm

        Min. Glass size

          300*450mm

        Glass thickness

          3-50mm

       Cleaning speed range

           0-12mm

         Insulating glass thickness

           10-48mm

          Cleaning glass brush

           3 groups

           Transmission speed

            45m/min

          Power

           31KW

          Pressure

          1Mpa


Double glazing glass production line

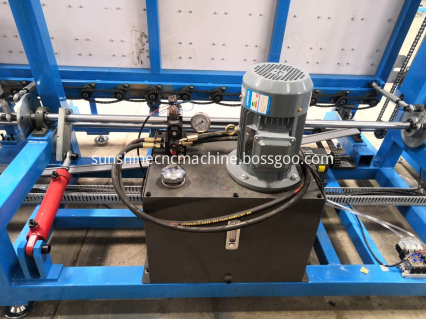

IG line parts


Remarks:

Pkg: Seaworthy packing or customized

Terms: FOB/CIF/CFR/EXW

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive Your First Payment

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and

                The rest 70% is effected while delivering the goods




Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
