Vertical Insulated Glass Panel Press Machine

Payment Type: L/C,T/T,D/P,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 10 Days

Basic Info

Model No.: ZKX-Series

Certificate: ISO9001;CE

Color: White/blue/black Or Customized

Model: ZKX-2500

Additional Info

Packaging: Seaworthy packing, wooden box or customized

Productivity: 20sets/month

Brand: Sunshine CNC

Transportation: Ocean,Air,by truck

Place of Origin: Shandong,China

Supply Ability: 20sets/month

Certificate: ISO9001;CE

Port: Qingdao,Shanghai,Guangzhou

Product Description

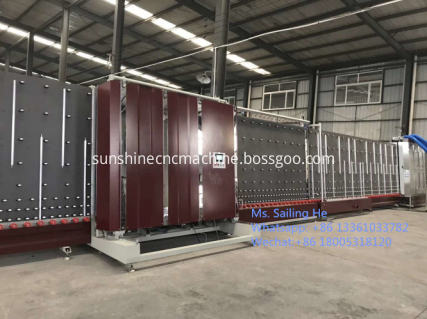

Vertical Insulated Glass Panel Press Machine


Functions characteristics :

Sh   Shape glass LOW-E insulating glass production line
 Automatic control for LOW-E glass (2-brush treatment for LOW-E)
 Automatic adjust function for pressing with hydraulic compression
 Titling table with hydraulic pressure
 Monitor using system temperature/speed/production volume
 Mechanical trouble cheek
 Whole line control function with 1 monitor



      Technical Parameters:

        Max. Glass Size

           2450*3660mm

        Min. Glass size

          300*450mm

        Glass thickness

          3-50mm

       Cleaning speed range

           0-12mm

         Insulating glass thickness

           10-48mm

          Cleaning glass brush

           3 groups

           Transmission speed

            45m/min

          Power

           31KW

          Pressure

          1Mpa


Curtain wall insulating glass production line



Insulating glass production line

IGU part



Remarks:

Pkg: Seaworthy packing or customized

Terms: FOB/CIF/CFR/EXW

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive Your First Payment

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and

                The rest 70% is effected while delivering the goods




Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
